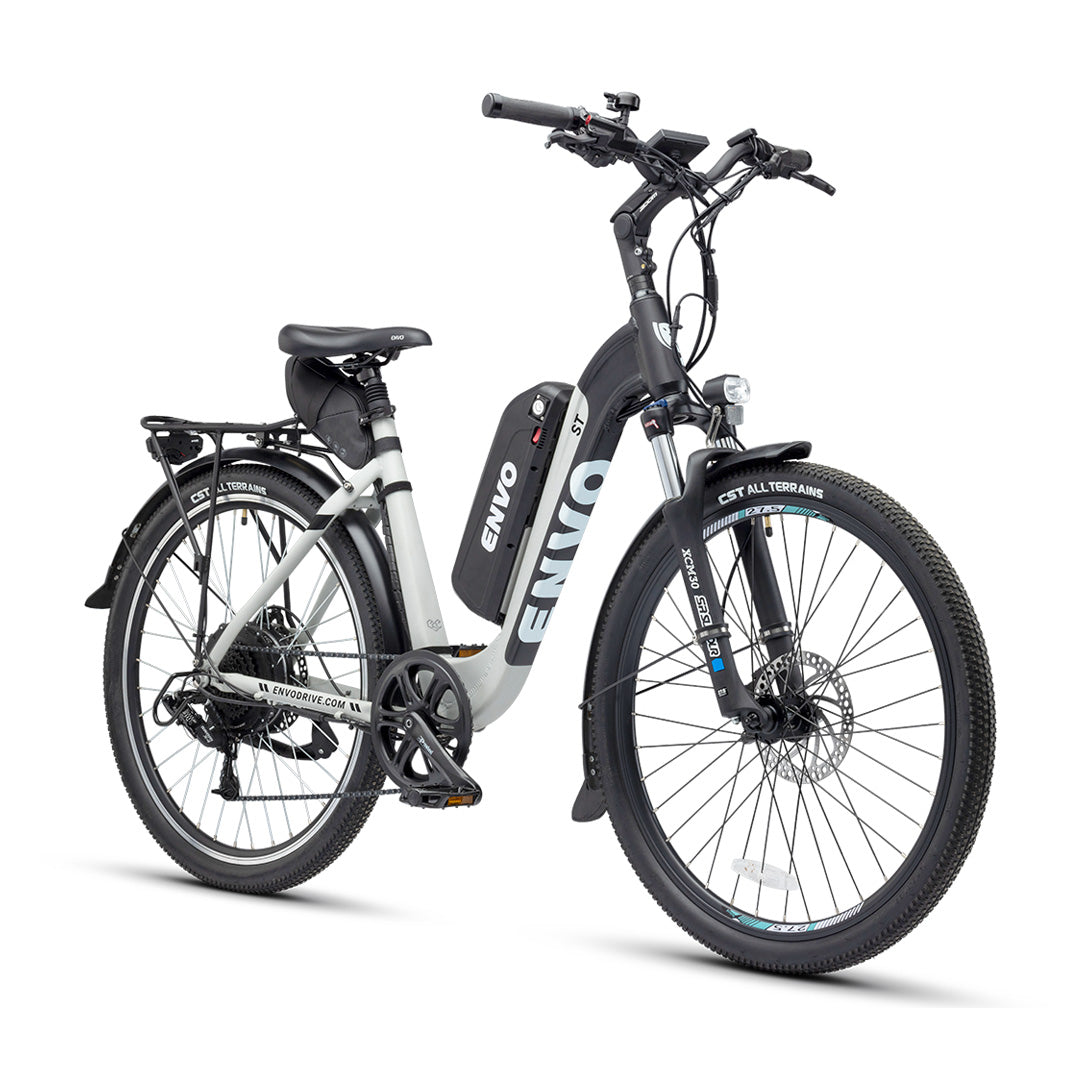

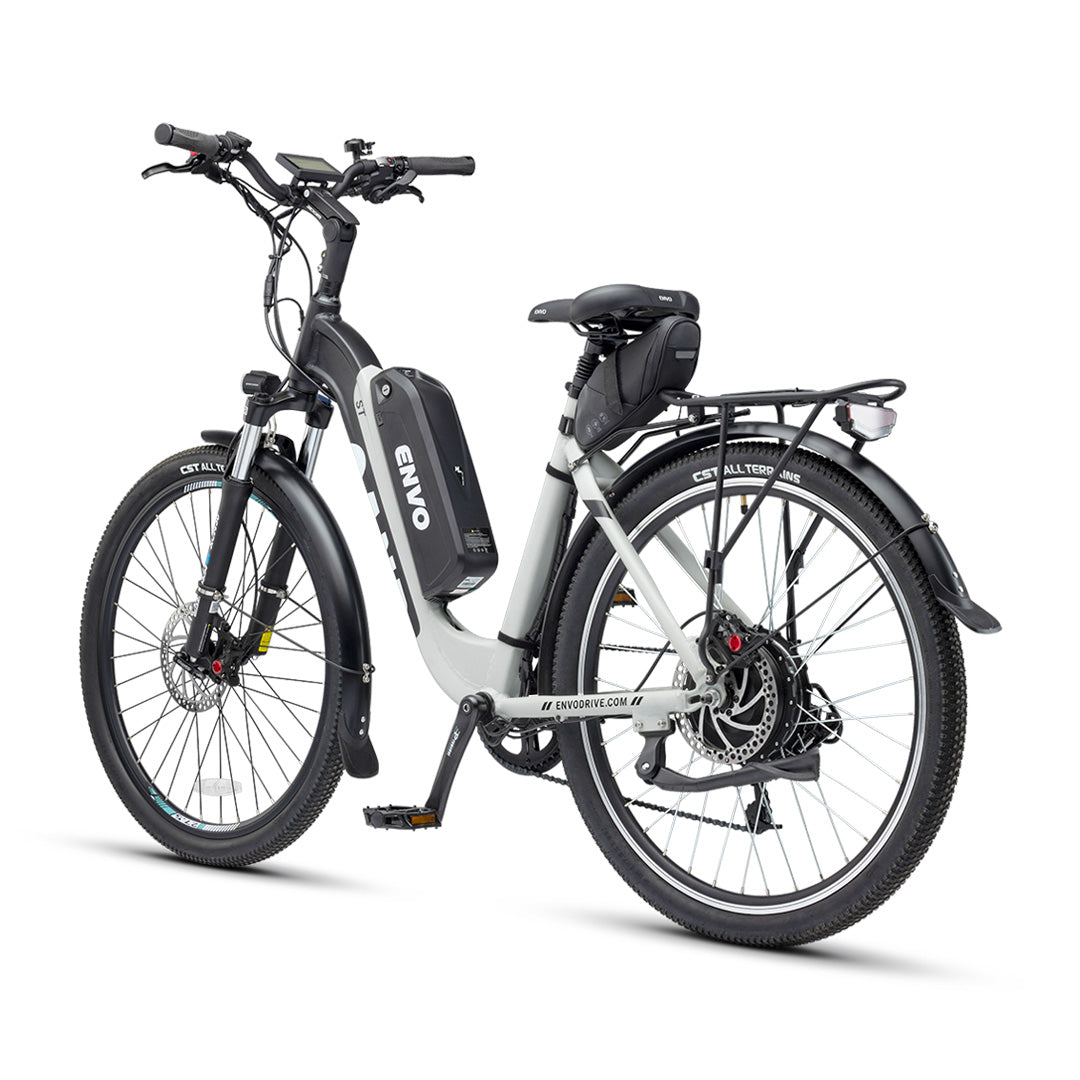

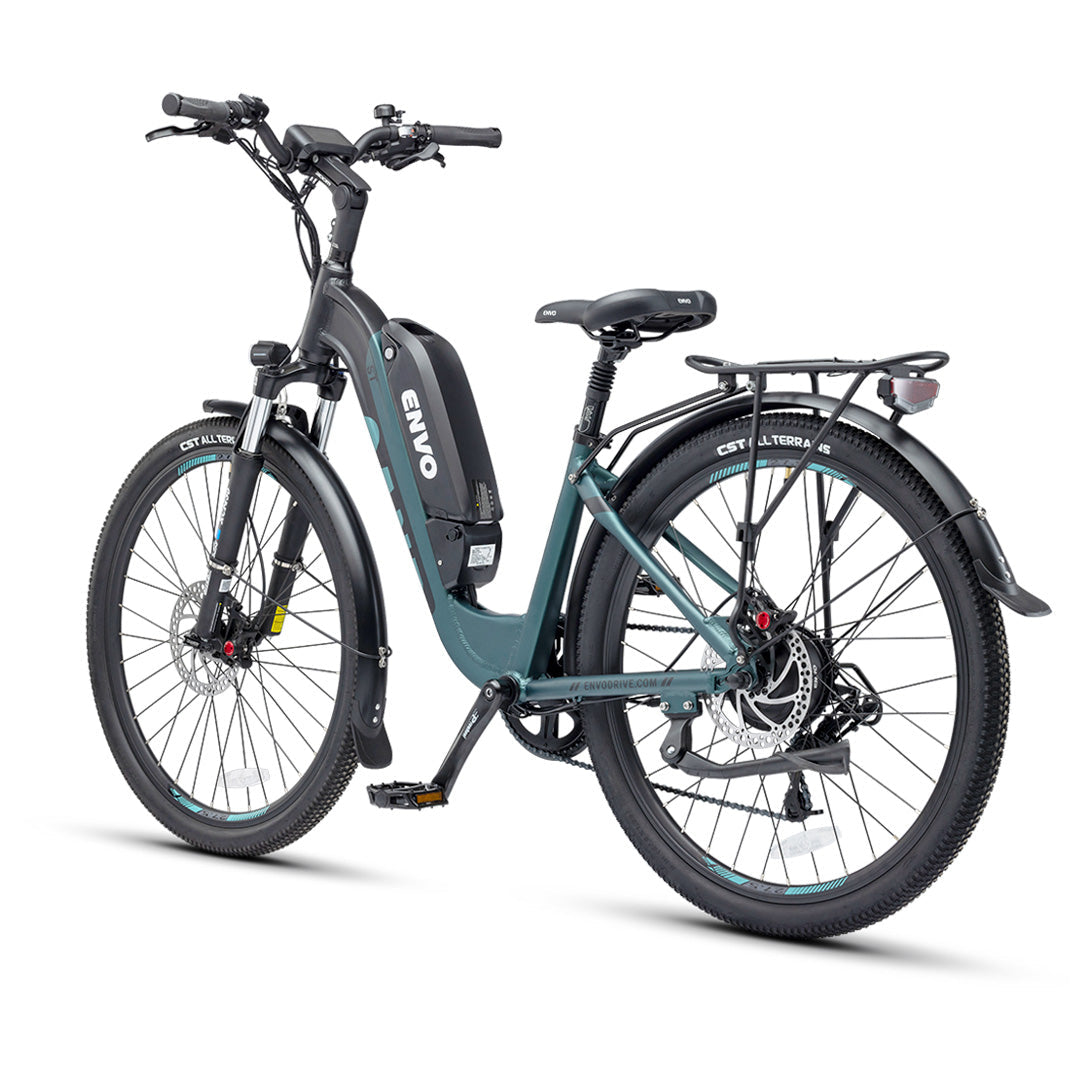

ENVO ST Dual Sport

Frame: 27.5 X1.95, Hydro-formed Alloy 6061 TIG Welded

Fork: Zoom 595S AMS /SR Suntour, 27.5 X1.95 Suspension Fork,  with load adjustment and lock, Travel 80mm

Headsets: Threadless Headsets, φ25.4×44×30mm，22mm, NECO

Handlebar: Alloy Handlebar, 31.8mm TP22.2x680mm, 65mm, 30 degree

Stem: Alloy thread-less stem, φ25.4*E110mm, adustable, sand black, MA-579, PROMAX

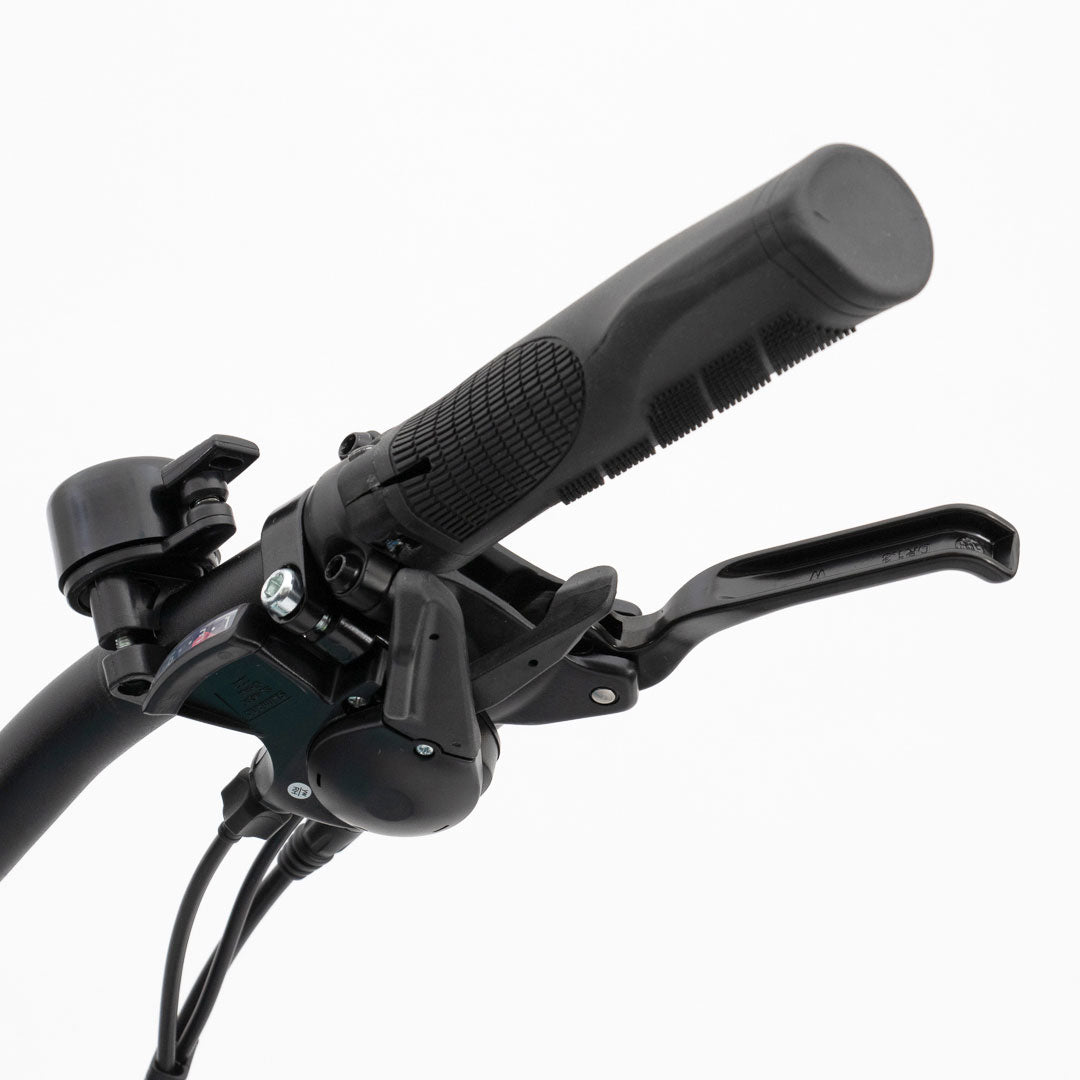

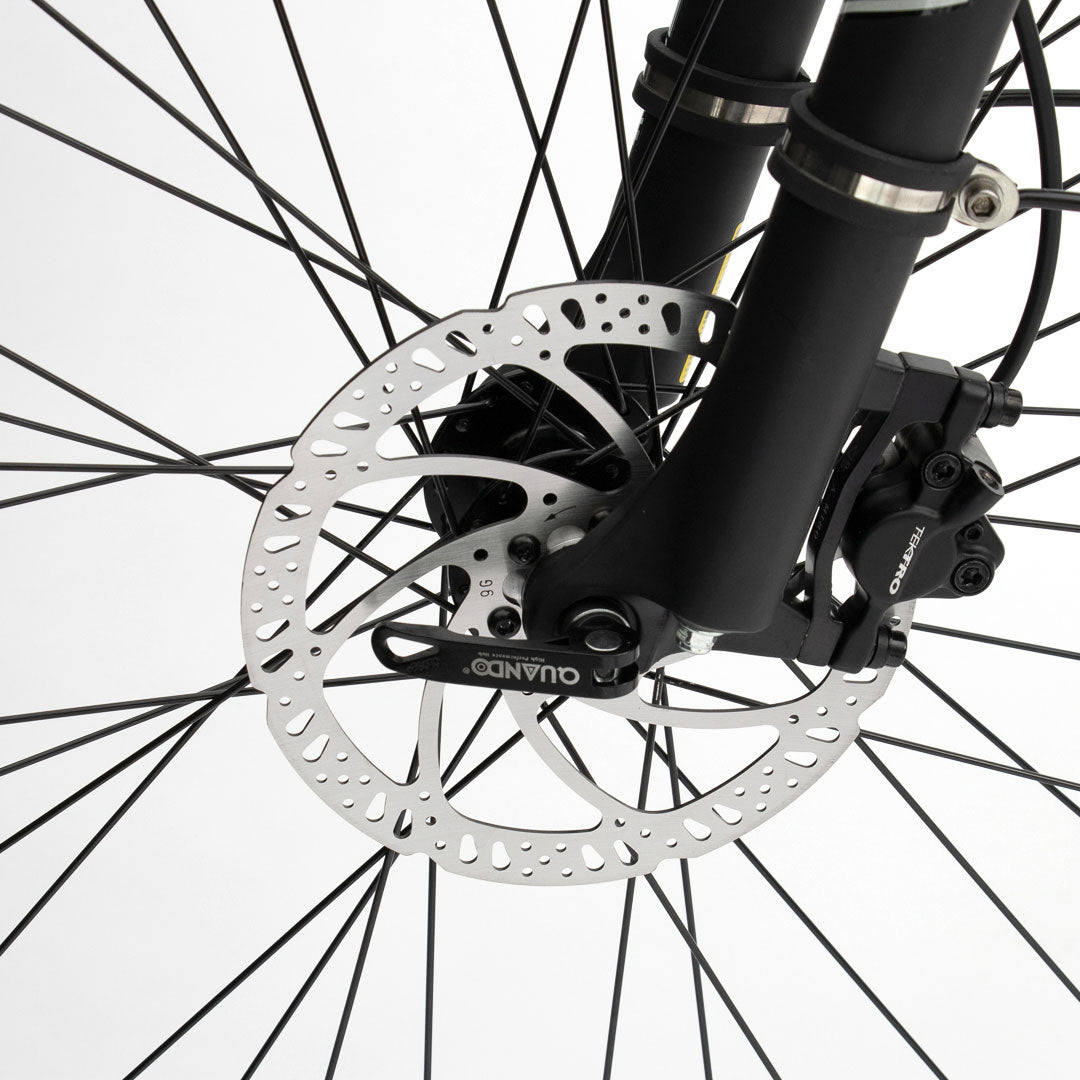

Brake Set: F/R alloy hydraulic disc brakes, black ,with alloy electric brake lever , Rotor 180, Zoom HB 875-E/Tektro HD-E350

Grip: TPR Grip VELO

Crank Set: 3/32″x48Tx170MMx9/16″, alloy crank with single chain ring cover, PROWHEEL PRO-748P

BB Sets: Sealed B.B sets, B908

Pedal: Alloy 9/16″ WELLGO

Chain: TEC, C70

F/R Hub: F: Alloy hub with quick release, Hub Motor

Gear Set: SRAM X4/SHIMANO ALTUS 8-speed

Rim: 27.5″x13Gx36H Alloy Double Wall Black and Stainless Steel Black 13G Spokes

Tire: 27.5″x1.95 Black, with AV butyle tube, CSR/CHAOYANG/KENDA

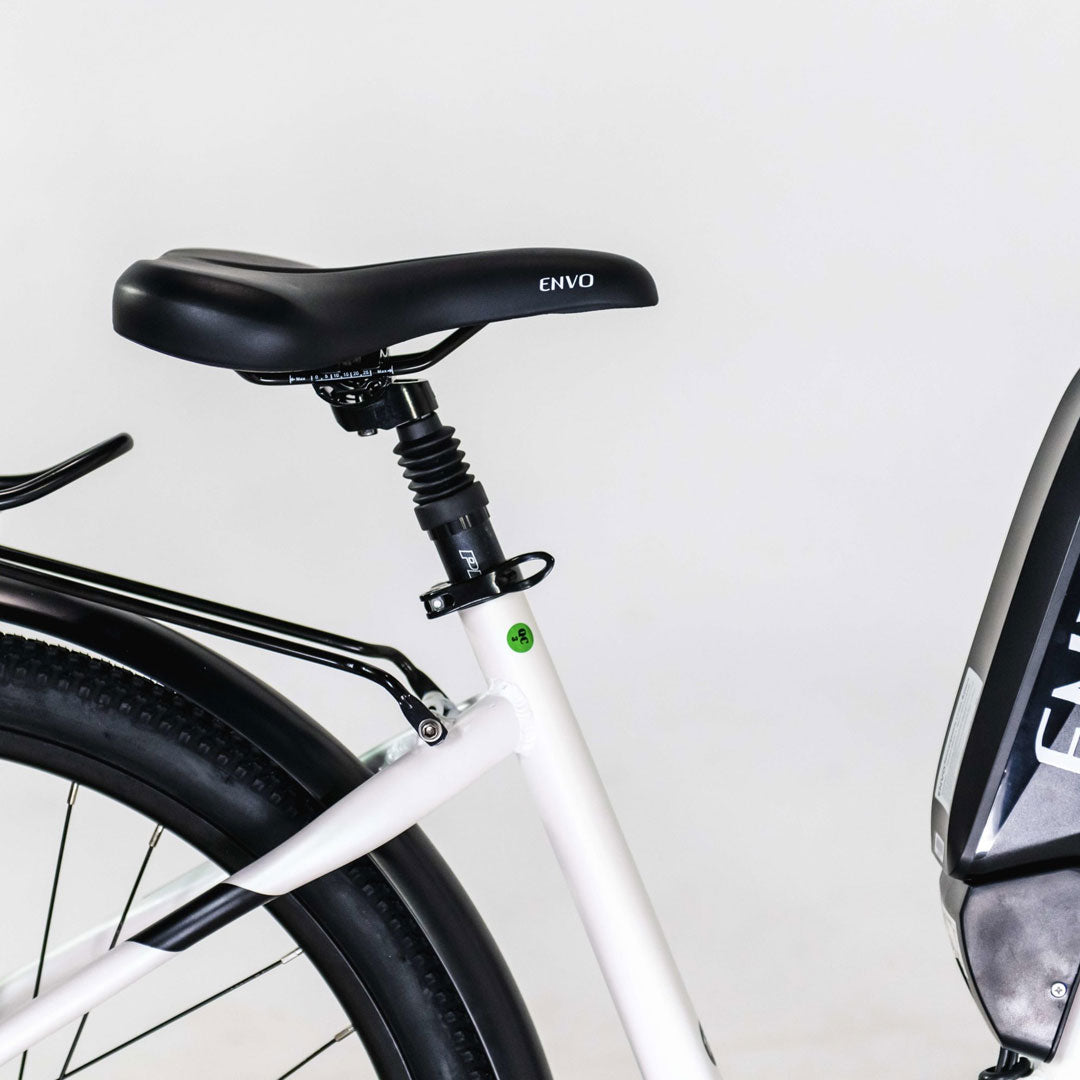

Saddle: Vinyl top cover, padded with PU, with black ABS , VELO

Seat Post: Alloy suspension seat post

Kickstand: Alloy, single rear kickstand

Front Light: Battery light, AXENDO 60

Rear Light: Battery light RL13

Rear Carrier: Alloy carrier black

Fender: PVC Plastic Fender

Motor: Brushless 36V/500W max/ Geared Rear Motor

Battery: 36V/12.8AH 3200 LG/Panasonic Lithium battery

Charger: 42V 2A CC-CV 240/120V ULC

Controller: BLDC Sine-wave controller 17A waterproof connectors

Sensor: PAS/Thumb Throttle, Speed Sensor

Display: LCD Panel, with 5 assistance levels, power display, 750C

Packing: 85% Assembled (Need to install Front Wheel and Handlebar)

Available Options:
Small (15inch Frame): Color Pearl and Jungle
Large (19inch Frame): Color Pearl and Jungle

Seat Tube Length
The seat tube height should be adjusted as such that while pedaling your leg should not be fully extended at the bottom of the pedal, and your leg should not push against your body on the upswing.

Effective Top Tube Length
The effective top tube length impacts your reach, if the top tube length is too long your body will be stretched and that may cause back pain and if the length is too short you may find it difficult to handle the bicycle. Our products feature an adjustable handlebar stem which lets the rider do the ergonomic fine-tuning.

Standover Height
For a comfortable experience, there must always be at least an inch or so space between you and the top tube on your bike when you are standing flat-footed. You can measure your inseam length and check that value against the table provided below.

ENVO ST E-Bike User Manual (Click to View or Download)
