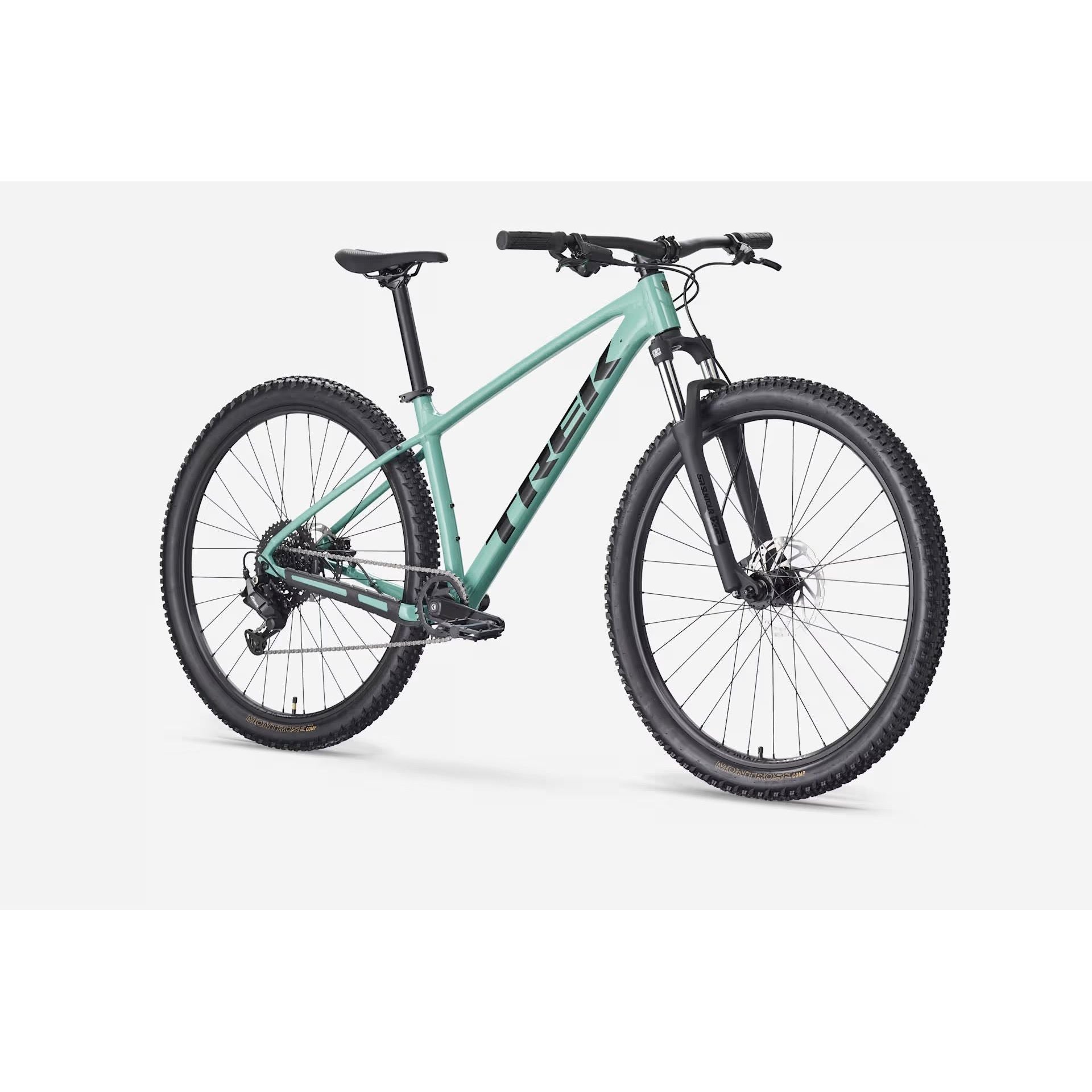

Trek Marlin 4 Gen 3 8-Speed MTB Blue Sage

*Frame

Size: XXS , XS

Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Size: S , M , ML , L , XL

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

*Fork

Size: XXS

SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26" wheel, 100mm QR, 100mm travel

Size: XS

SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel

Size: S

SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel

Size: M , ML , L , XL

SR Suntour XCE 28, coil spring, preload, 46mm offset for 29" wheel, 100mm QR, 100mm travel

Hub front

Formula DC-20, alloy, 6-bolt, 5x100mm QR

Hub rear

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

Skewer rear

173x5mm QR

Rim

Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve

*Tire

Size: XXS

Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''

Size: XS , S

Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"

Size: M , ML , L , XL

Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"

Shifter

Shimano M315, 8 speed

Rear derailleur

Shimano ESSA U2000

*Crank

Size: XXS , XS

ProWheel alloy, 32T narrow-wide steel ring, 160mm length

Size: S , M , ML

ProWheel alloy, 32T narrow-wide steel ring, 170mm length

Size: L , XL

ProWheel alloy, 32T narrow-wide steel ring, 175mm length

Cassette

Shimano HG300, 11-45, 8 speed

Chain

KMC Z8.3, 8 speed

Pedal

nylon platform

Saddle

Bontrager Verse Short, stainless steel rails

*Seatpost

Size: XXS

Bontrager alloy, 31.6mm, 12mm offset, 300mm length

Size: XS , S , M

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size: ML , L , XL

Bontrager alloy, 31.6mm, 12mm offset, 400mm length

*Handlebar

Size: XXS , XS

Bontrager alloy, 31.8mm, 5mm rise, 690mm width

Size: S

Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Size: M , ML , L , XL

Bontrager alloy, 31.8mm, 15mm rise, 750mm width

Grips

Trek Line Comp, nylon lock-on

*Stem

Size: XXS , XS , S

Bontrager Comp, 31.8mm, 7 degree, 35mm length

Size: M , ML , L

Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size: XL

Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Headset

Semi-integrated, 1-1/8''

*Brake

Size: XXS , XS , S

Tektro HD-M276 hydraulic disc

Size: M , ML , L , XL

Tektro HD-M275 hydraulic disc

*Brake rotor

Size: XXS , XS , S , M , ML , L , XL

Tektro, 6-bolt, 160mm

Size: M , ML , L , XL

Tektro, 6-bolt, 180mm

Weight

M - 14.90 kg / 32.85 lbs

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
