| FBTKMAR5DB-XS | XS | ||
|
| FBTKMAR5DB-S | S | ||
|
| FBTKMAR5DB-M | M | ||
|
| FBTKMAR5DB-ML | ML | ||
|
| FBTKMAR5DB-L | L | ||
|
| FBTKMAR5DB-XL | XL |
Frequently Bought Together
Total price:
- Price
- $54.99
Frameset
|

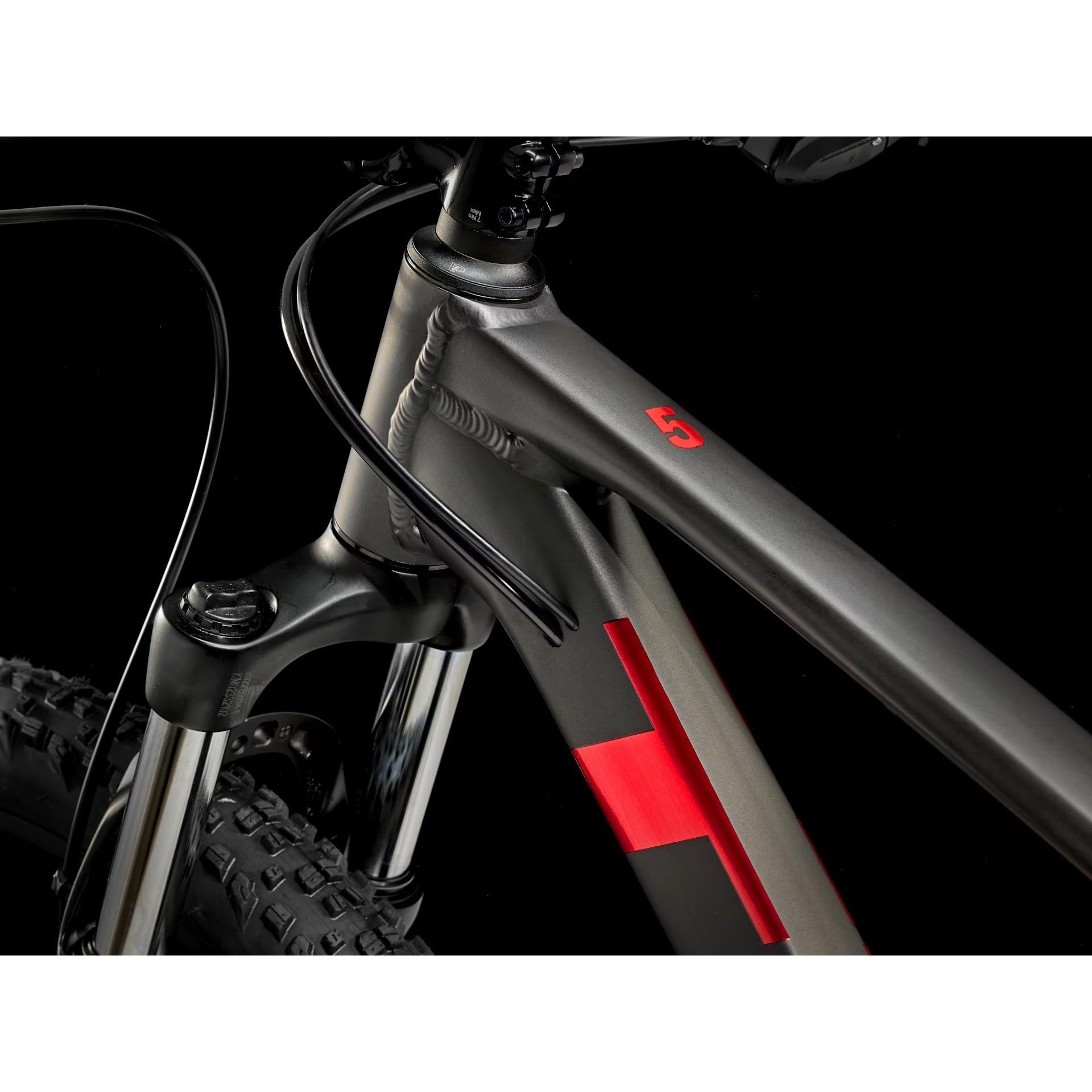

*Frame |

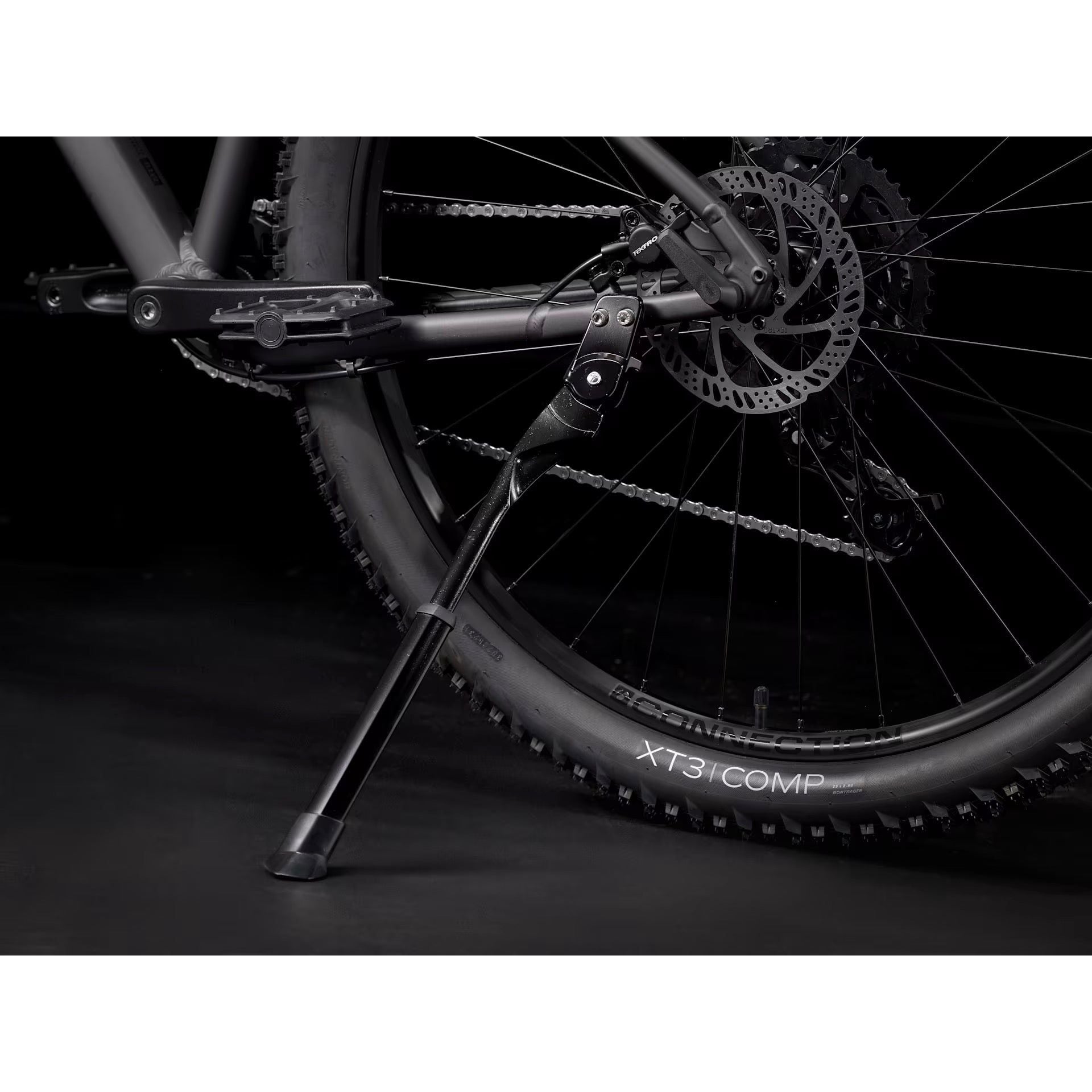

Size: XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
|
|
Size: S , M , ML , L , XL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
|

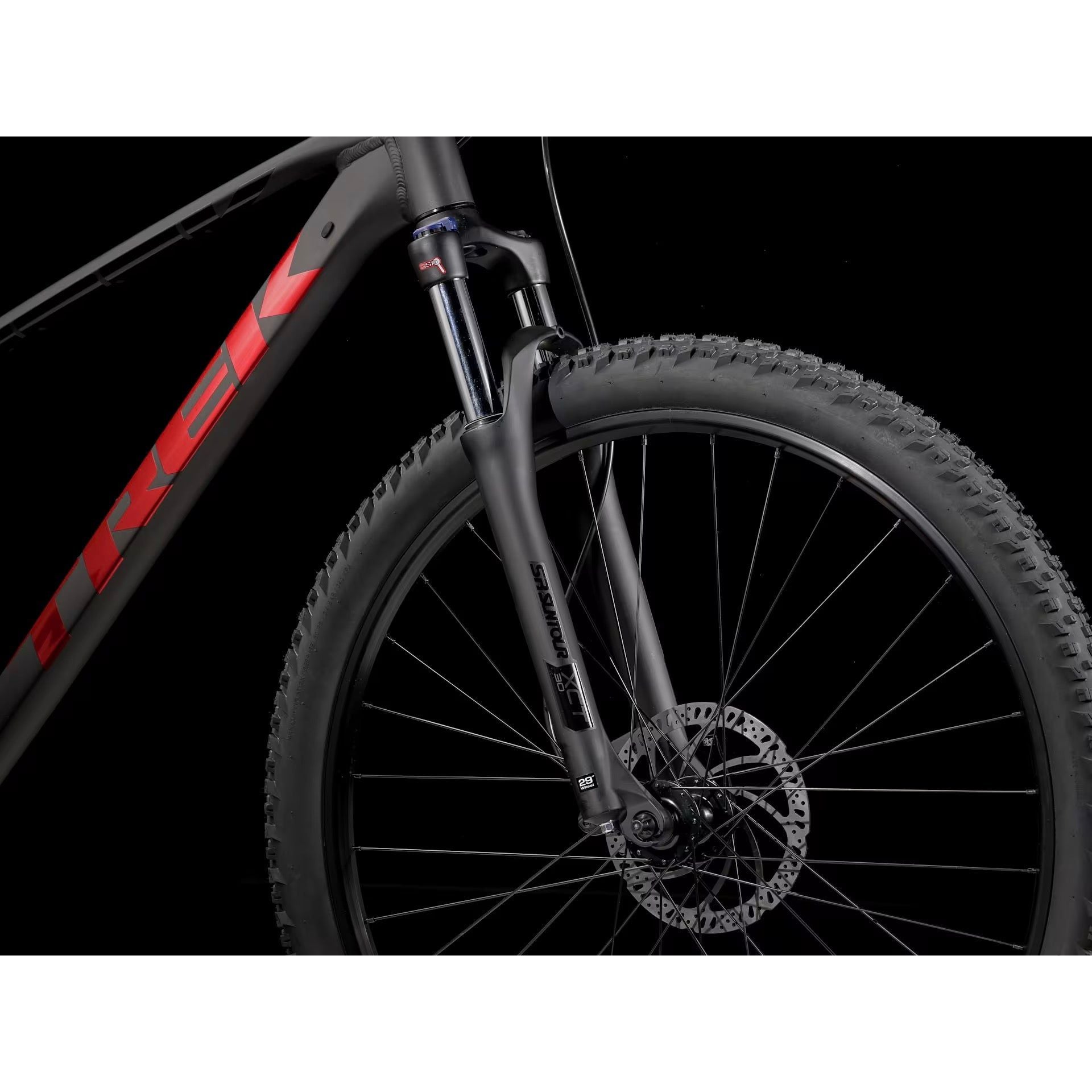

*Fork |
Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel |
|
|
Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel |
|
|
Size: M , ML , L , XL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel |
|
Max compatible fork travel |
120mm, XXS: 80mm |
Wheels
|
Hub front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|
Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
|
Skewer rear |
|
|
Rim |
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
|
Spokes |
14g stainless steel, black |
|

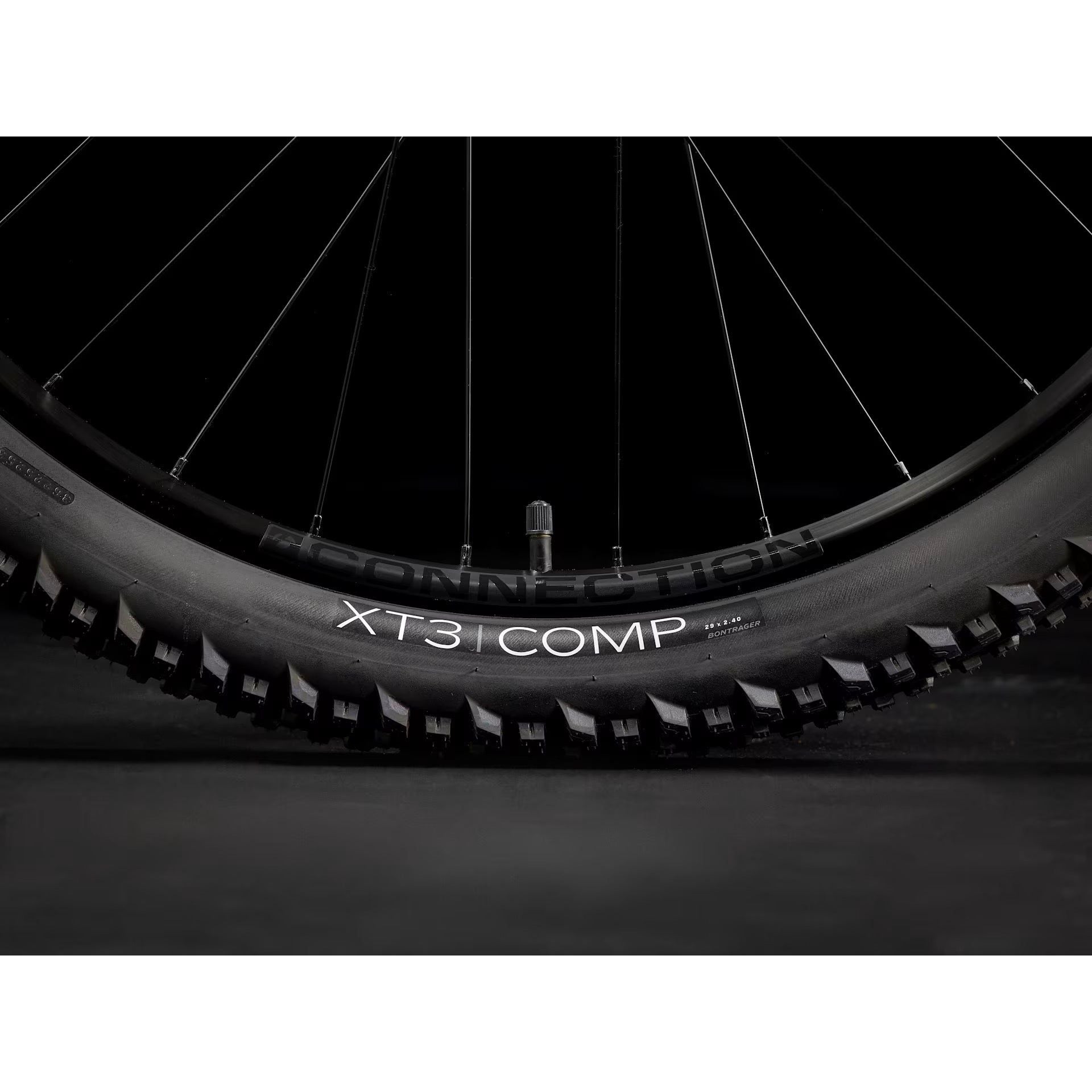

*Tire |
Size: XS , S |
|
|
Size: M , ML , L , XL |
|
Max tire size |
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
|
Shifter |
Shimano U4000, 9 speed |
|

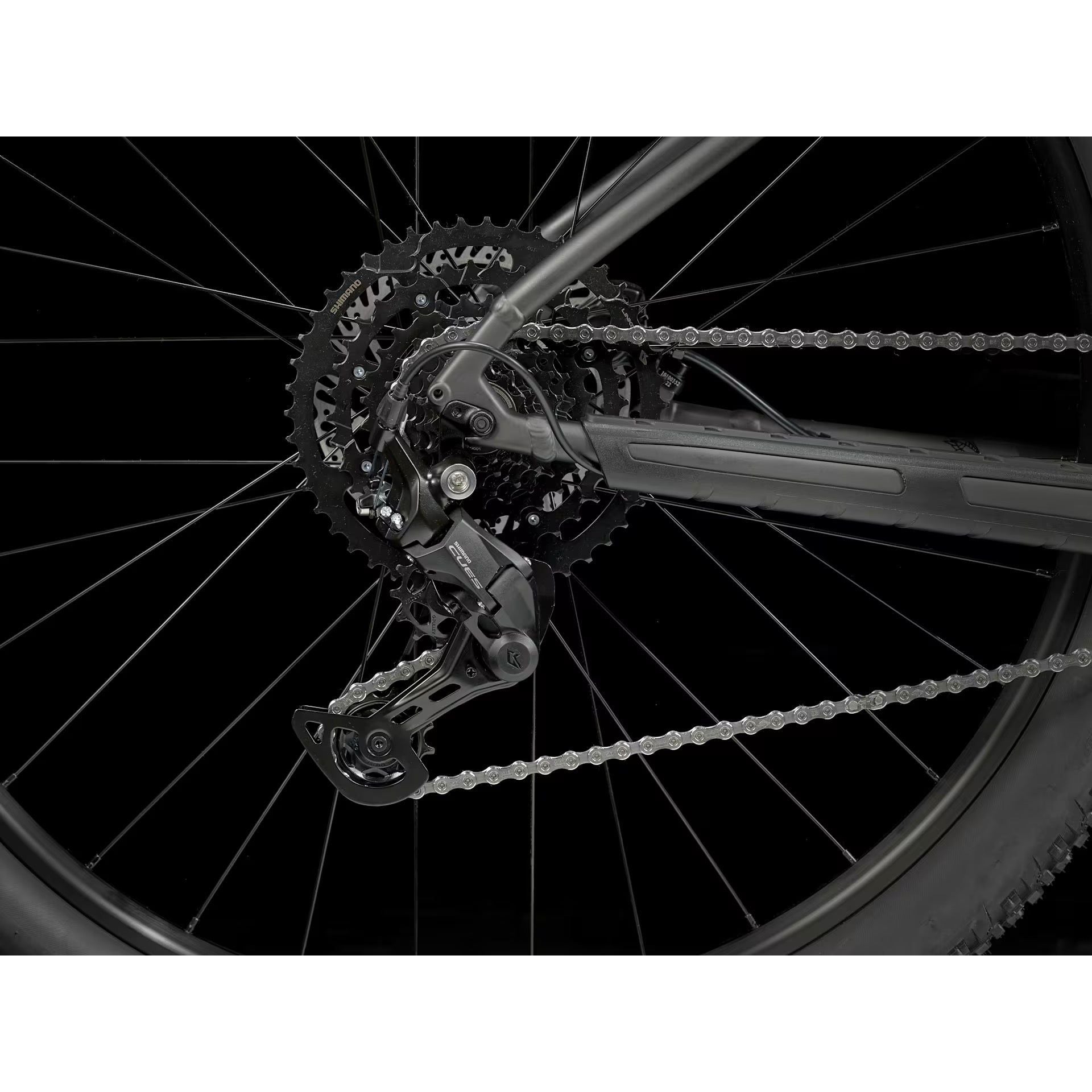

Rear derailleur |
Shimano CUES U4000 |
|

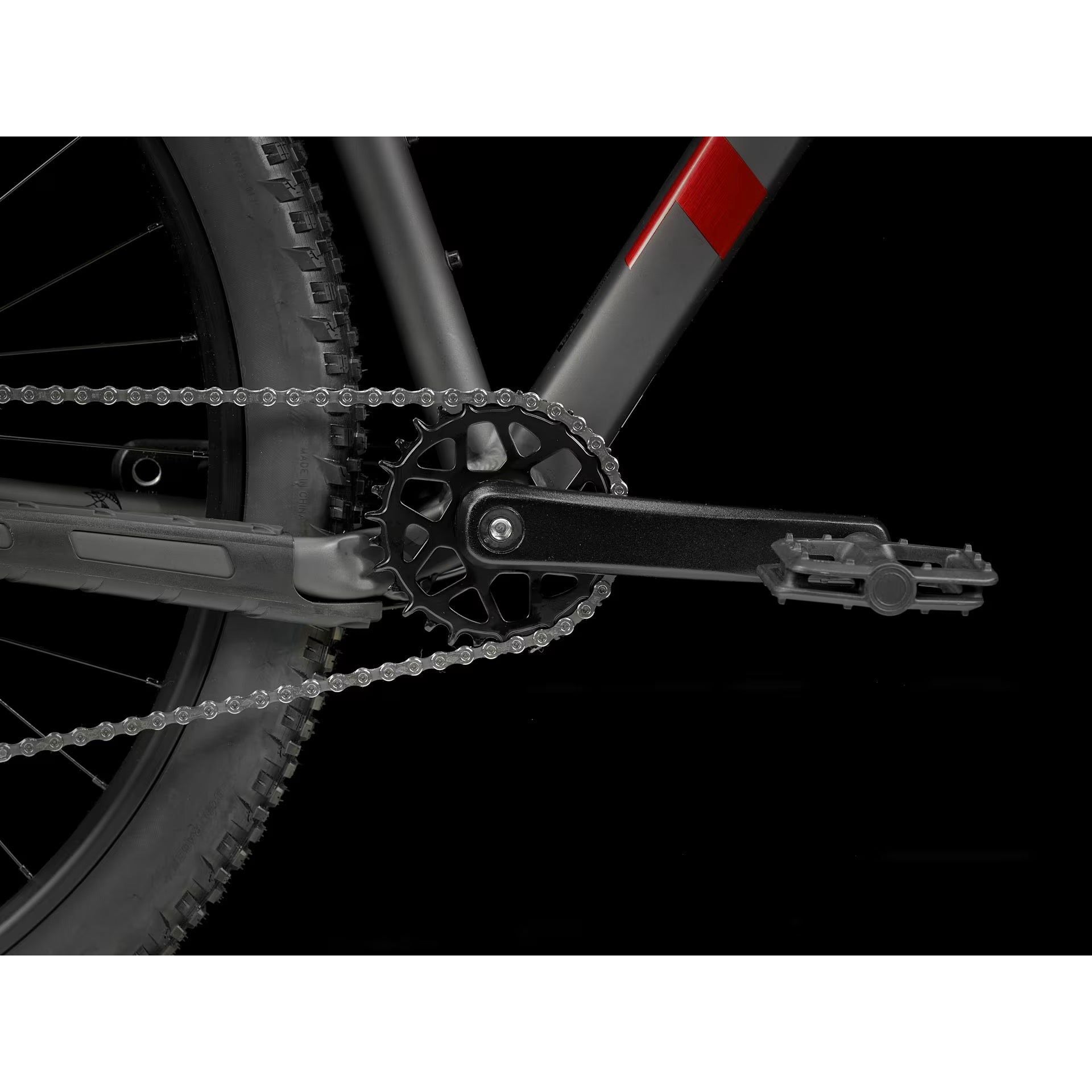

*Crank |
Size: XS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length |
|
|
Size: S , M , ML Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length |
|
|
Size: L , XL Prowheel C10Y-NW, 30T steel narrow-wide ring, 175mm length |
|
Bottom bracket |
VP BC73, 73mm, threaded cartridge |
|
Cassette |
Shimano LINKGLIDE LG300, 11-46, 9 speed |
|

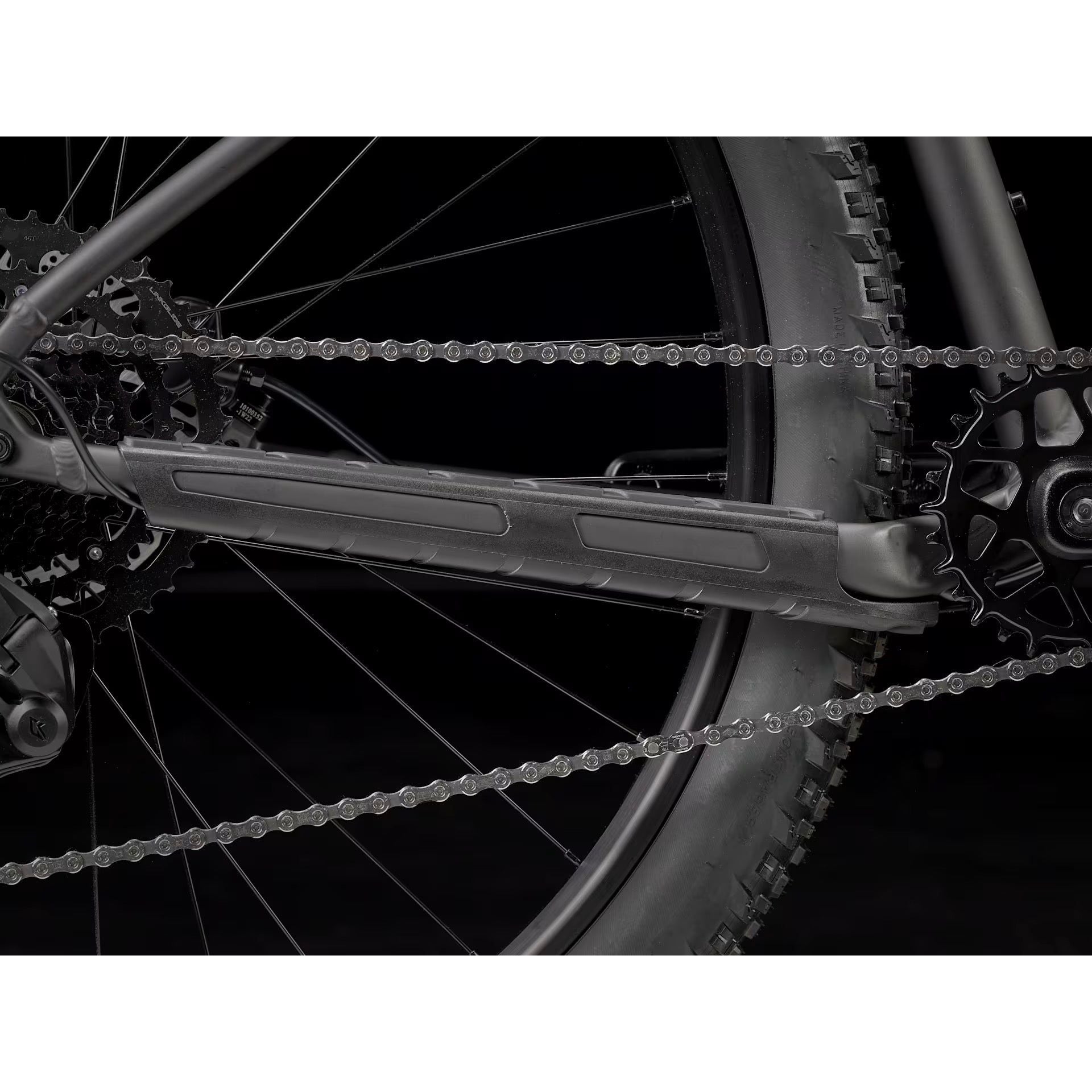

Chain |
Shimano LG500, 9/10/11 speed |
|
Pedal |
|
|
Max chainring size |
1x: See FAQ, 2x: 36T, 3x: 42T |
Components
|
*Seatpost |
Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
|
Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
*Handlebar |
Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
|
|
Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
|
|
Size: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
Grips |
|
|
*Stem |
Size: XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length |
|
|
Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
|
Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
Headset |
Semi-integrated, 1-1/8" |
|

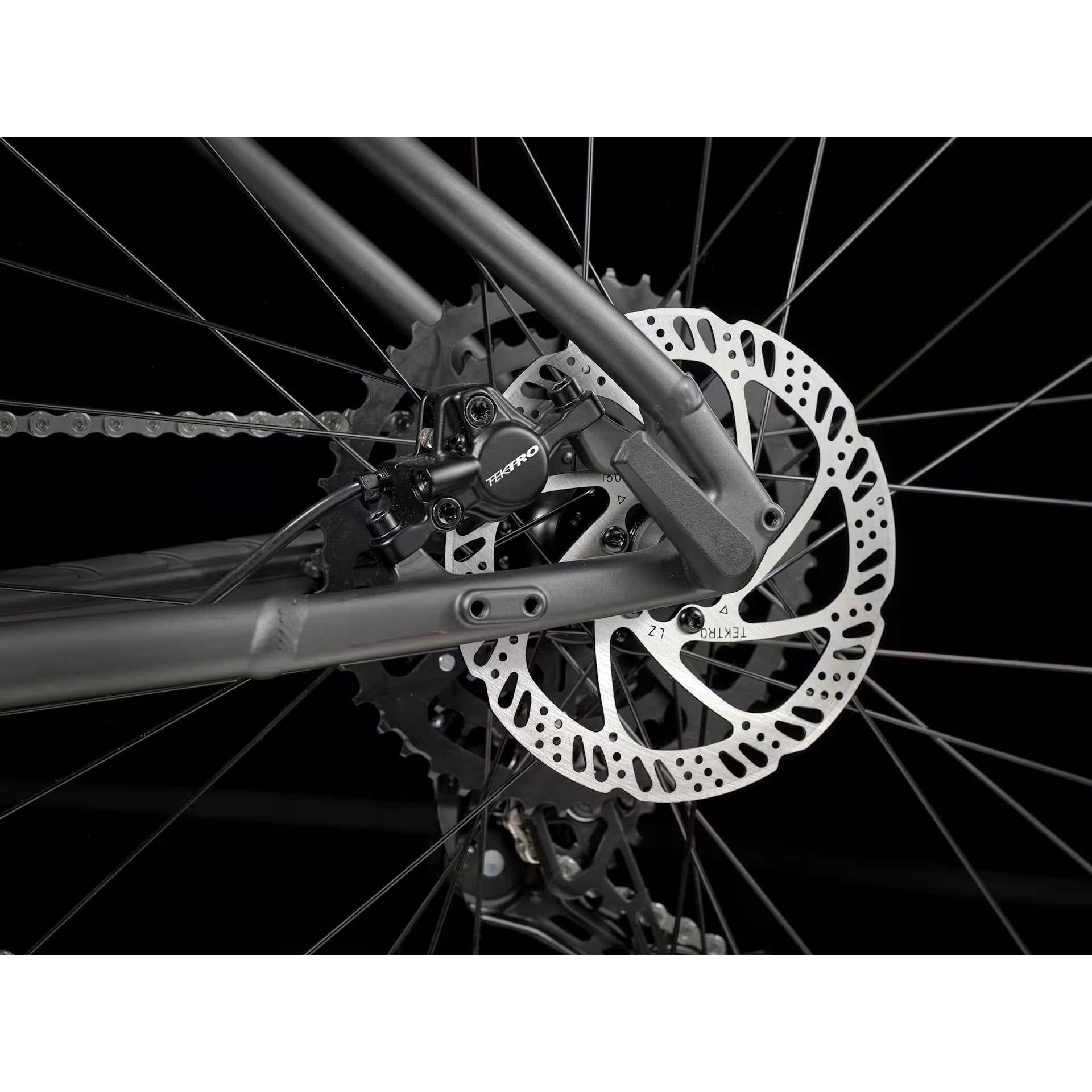

Brake rotor |
Tektro, 6-bolt, 160mm |
|
*Brake Set |
Size: XS , S |
|
|
Size: M , ML , L , XL |
|
Rotor size |
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight
|
Weight |
M - 15.10 kg / 33.29 lbs (with tubes) |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
