Frame |

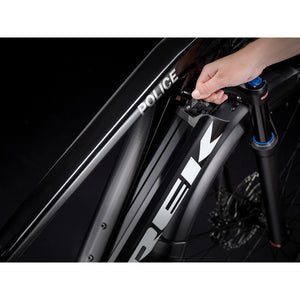

Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle |
Fork |
SR Suntour Zeron 35, air spring, LO R damper, hydraulic lockout, tapered steerer, 44mm offset, Boost110, 15mm bolt-on thru axle, 120mm travel |
Hub front |
Bontrager alloy, 6-bolt, Boost110, 15mm thru axle |
Hub rear |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle |
Rim |
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
Spokes |
14g stainless steel |
Tire |
Size: S |
|
Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.35'' |
|
Size: M, L, XL |
|
Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.30'' |
Shifter |
SRAM SX Eagle single-click, 12 speed |
Rear derailleur |
SRAM NX Eagle |
Crank |
SRAM X1 1000, 34T, 165mm length |
Cassette |
SRAM PG-1210 Eagle, 11-50, 12 speed |
Chain |
SRAM SX Eagle, 12 speed |
Pedal |
Wellgo BO-87B, alloy body, Cro-Mo axle, replaceable pins |

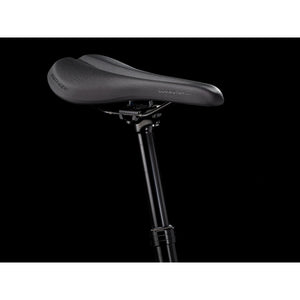

Saddle |
Bontrager Commuter Comp |
Seatpost |
Size: S |
|
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
|
Size: M, L, XL |
|
TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
Handlebar |
Size: S |
|
Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
|
Size: M, L, XL |
|
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Grips |
Bontrager XR Endurance Elite, lock-on, ergonomic |
Stem |
Size: S, M |
|
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
Size: L, XL |
|
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
Headset |
FSA IS-2, 1-1/8'' top, 1.5'' bottom |
Brake |
Size: S, M, L, XL |
|
Shimano hydraulic disc, MT501 lever, MT520 4-piston caliper |
|
Size: S, M, L, XL |
|
Shimano MT520 4-piston hydraulic disc |

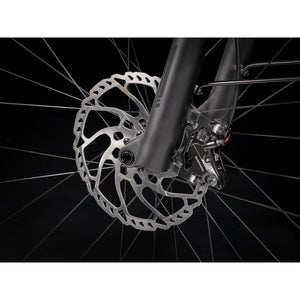

Brake rotor |
Shimano RT66, 203mm, 6-bolt |
Battery |
Bosch PowerTube 625 |
Charger |
Bosch standard 4A (100-240V) charger |

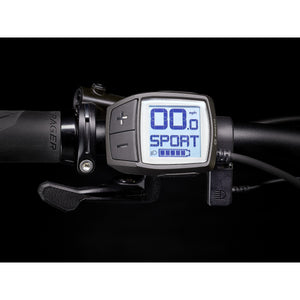

Controller |
Bosch Purion |

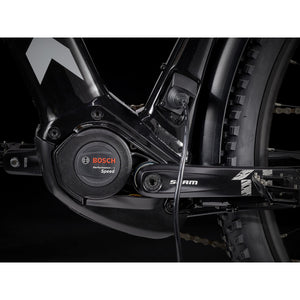

Motor |
Bosch Performance Speed, 75 Nm, 28 mph / 45 kph |
Light |
Size: S, M, L, XL |
|
Trek Lync taillight, 50 lumens |
|
Size: S, M, L, XL |
|
Trek Lync headlight, 500 lumens |
Kickstand |
Adjustable length rear mount alloy kickstand |
Weight |
M - 25.54 kg / 56.30 lbs (with tubes) |
Weight limit |
TMaximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|
